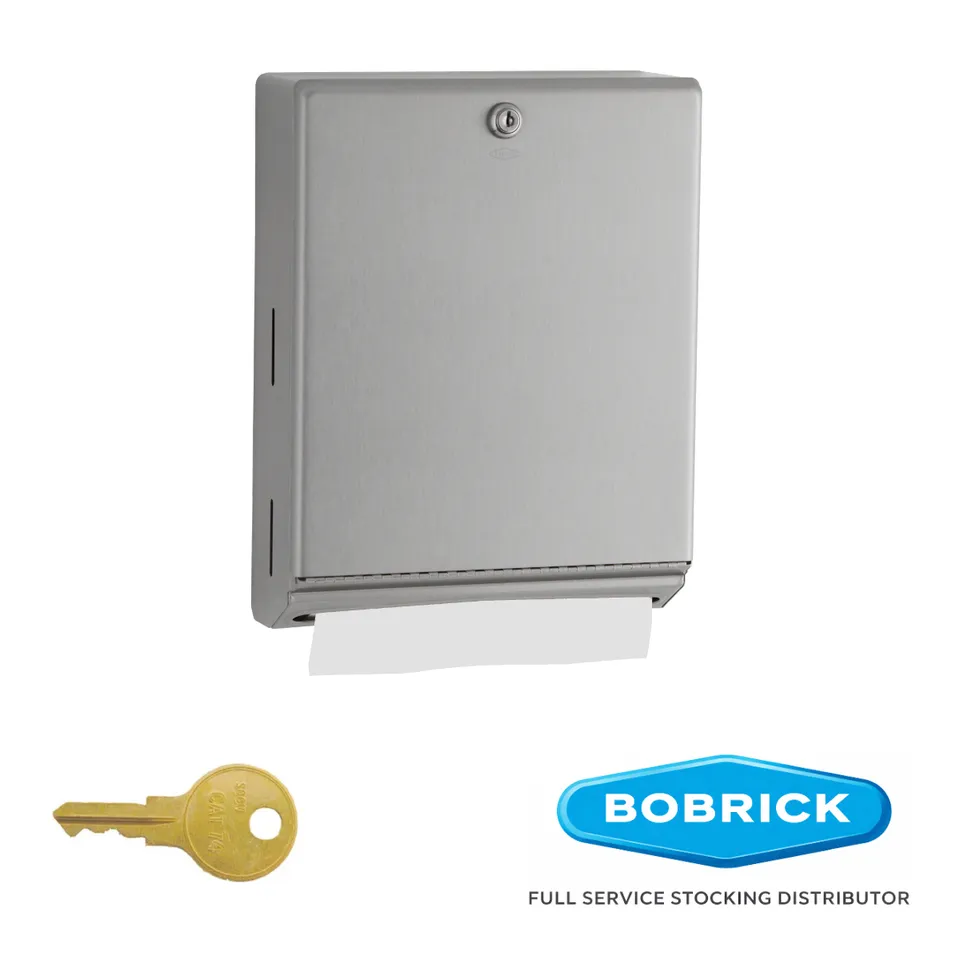

Bobrick B-262 Surface-Mounted Paper Towel Dispenser

The Bobrick B-262 is a surface-mounted paper towel dispenser from the ClassicSeries line, built for high-traffic commercial restrooms in offices, schools, and public buildings. The cabinet is type-304, 22-gauge stainless steel with an all-welded body and a satin finish. It holds 400 C-fold or 525 multifold towels and measures 10-3/4 in. wide, 14 in. high and 4 in. deep.

The door swings on a full-length stainless steel piano hinge and locks with a tumbler lock keyed like other Bobrick washroom accessories. A hemmed towel-tray opening lets towels come out without tearing. Slots in the cabinet sides show the towel level, so staff can see when a refill is due without opening the door. Towels from 3-1/8 in. to 3-13/16 in. deep dispense as standard; the optional 262-130 TowelMate accessory handles narrower 2-1/2 to 3-1/8 in. towels one at a time.

Bobrick rates the unit ADA compliant when installed at the proper height. Its 4 in. depth meets the ADA 307.2 projection limit for objects with a leading edge between 27 and 80 in. above the floor, so it can be placed in a circulation path. Mount the towel opening within the 15 to 48 in. reach range of ADA 308.
