Bobrick B-4063

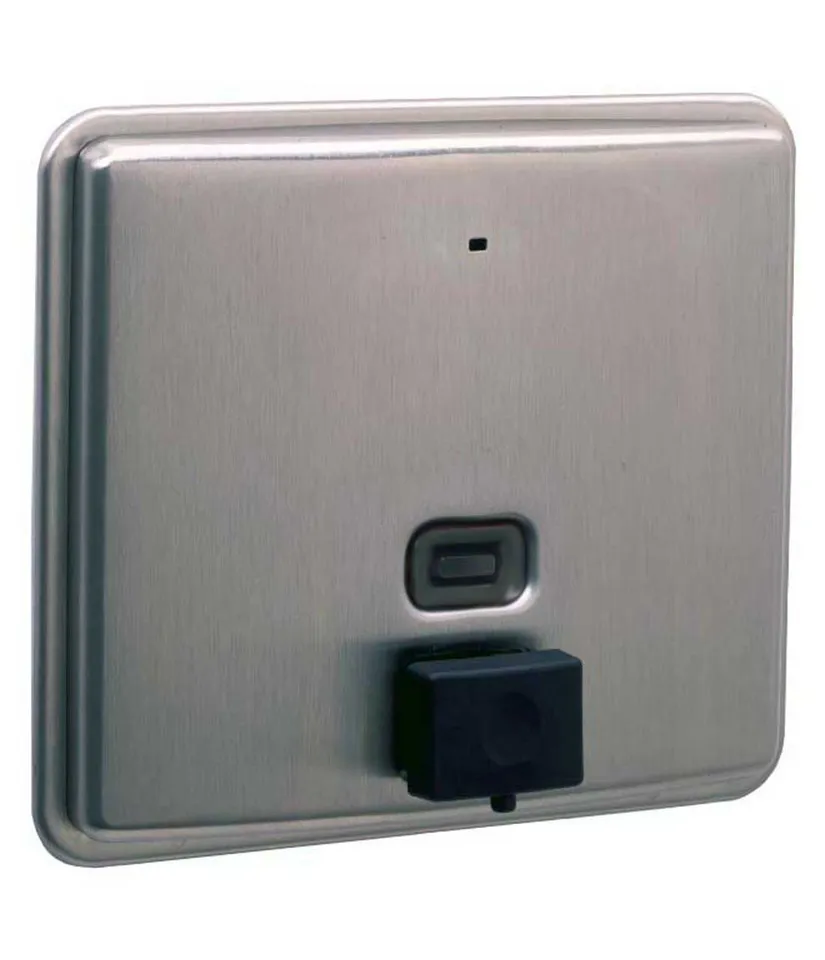

Bobrick's B-4063 is a recessed manual liquid soap dispenser from the ConturaSeries, drawn from 20-gauge (1.0mm) satin-finish stainless steel as a one-piece front. The vessel attached to the back holds 50-fl oz (1.5-L) of all-purpose soap, which reduces how often it needs refilling in busy office, airport, and school restrooms.

Because the front is drawn as a single piece, there are no seams across the face to trap dirt or soap. The push-button projects only 1 5/8 in. (40mm) from the wall. The vessel pulls out for filling, and a concealed locking device holds it closed in service, so the public cannot open it. It matches the other ConturaSeries accessories used in the same restroom.

Bobrick lists the B-4063 as ADA compliant. ADA 309.4 limits operating force to 5 lbf, and the button should be within the 15 to 48 in. reach range in ADA 308. Recessed mounting suits corridors and narrow lavatory aisles where a projecting unit would be in the way.
