Bobrick B-820 Counter-Mounted Multi-Feed Soap Reservoir

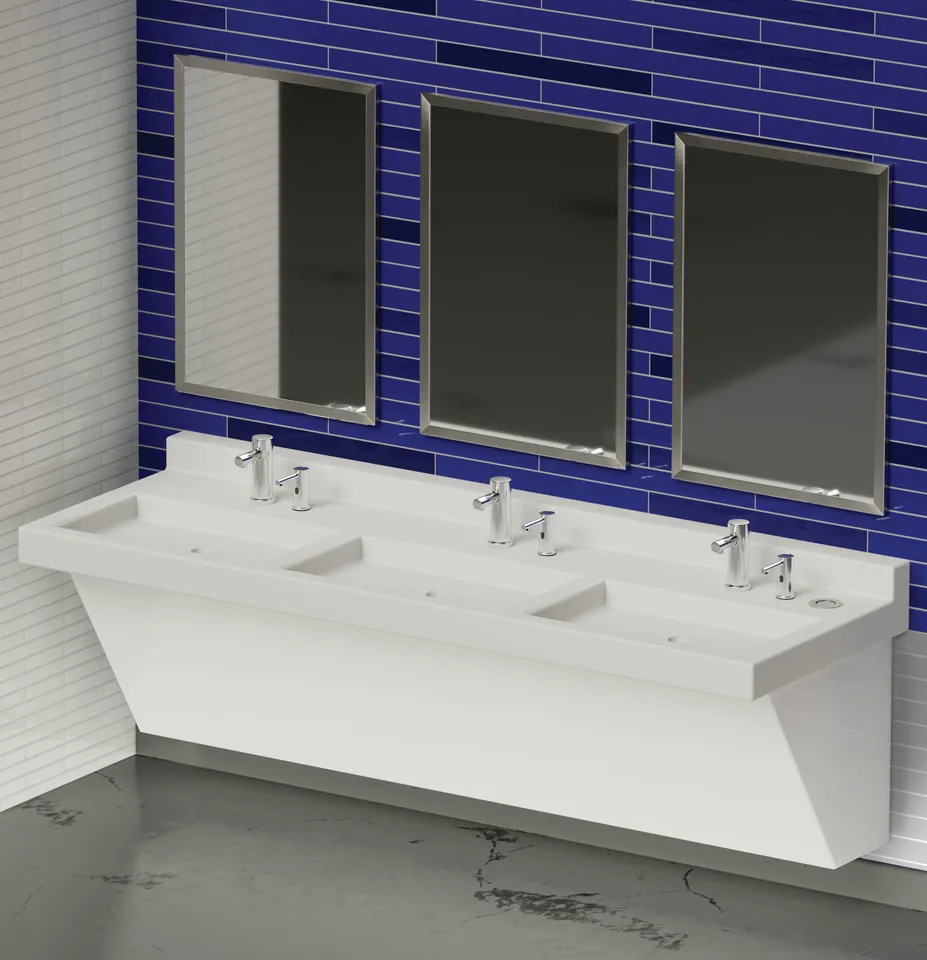

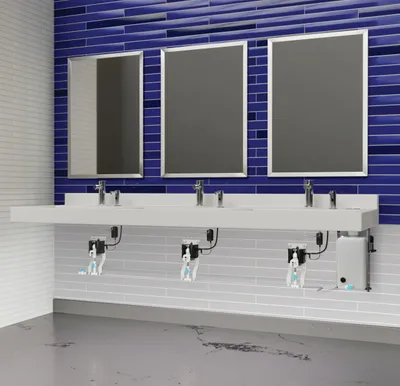

The Bobrick B-820 is the top-fill Multi-Feed Soap Reservoir at the center of Bobrick's automatic multi-feed soap dispensing system. It is built for high traffic facilities such as airports, stadiums, and large office lavatories. Its 6-liter tank feeds up to six automatic foam or liquid soap dispensers. A full row of sinks is refilled from one point instead of one dispenser at a time.

Bulk soap goes in through a fill port in the countertop, which Bobrick states saves 80% or more against proprietary cartridges. LED indicators on the fill port tell maintenance when service is needed, so nobody has to open a cabinet to check. Each dispenser spout is polished chrome over 304 stainless steel and uses a touch-free sensor. Power comes from a 6V AC adapter included with the reservoir and with each dispenser; an optional battery pack is available.

The reservoir and the dispensers are ordered and furnished separately: choose the B-820 reservoir, then the foam or liquid automatic dispenser to go with it. The fill port needs a 2 3/8 in. diameter counter hole and each dispenser a 1 in. hole, with a maximum counter thickness of 1 1/2 in. Bobrick lists the system as ADA compliant.
