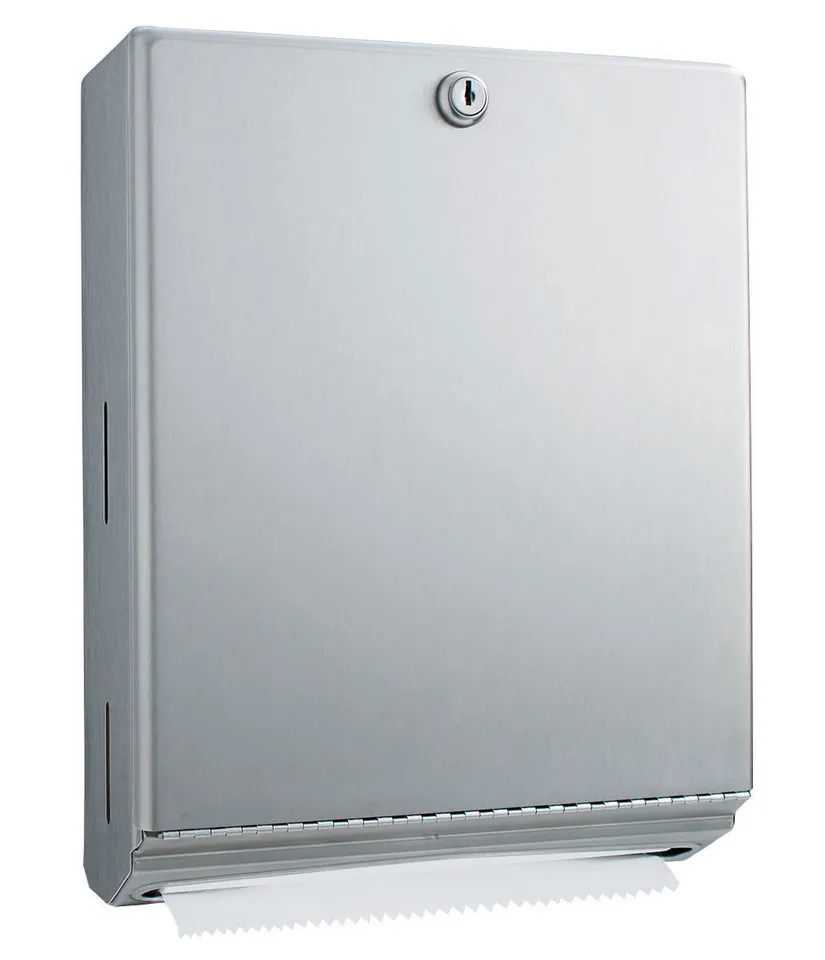

Gamco TD-2 Surface-Mounted Paper Towel Dispenser

The Gamco TD-2 is a surface-mounted paper towel dispenser in satin-finish stainless steel for commercial restrooms in schools, offices, and light industrial buildings. It dispenses 400 C-fold or 525 multifold towels, the common capacity for a standard folded towel cabinet. The unit measures 10 13/16 in. wide, 14 1/16 in. high and 3 15/16 in. deep.

The door is fitted with a tumbler lock so the towel supply stays inside until a keyholder opens it. Slots in the cabinet show the towel level, letting staff see refill time from the doorway instead of unlocking each unit on their rounds. Gamco offers special finishes for this model on request for projects that need something other than satin stainless.

Gamco lists the unit as ADA compliant. At 3 15/16 in. deep, it stays within the 4 in. that ADA 307.2 lets an object protrude into a circulation path when its leading edge is 27 to 80 in. above the floor. Position the towel opening within the 15 to 48 in. reach range of ADA 308.
