Setting and measuring shelf height
Run the tape from the finish floor. Sections 603.4 and 604.8.3 set a band with two end points, 40 in. and 48 in., and the shelf has to fall inside it.
Neither section says whether to measure to the top of the shelf or its underside. A shelf with both faces between 40 and 48 in. leaves nothing to argue about, and a thin shelf makes that easy.
Shelves do not borrow the reach ranges that coat hooks use. The text of 604.8.3 sends coat hooks to 308 but gives shelves their own band. A shelf can sit inside a reach range and still miss that band.
Shelves near grab bars, water closets, and paths
Under 609.3, the gap from a grab bar up to a shelf above it is 12 in. minimum. With the bar top at 33 to 36 in. under 609.4, that leaves a narrow window under the 48 in. maximum. A bar set at the low end of its range leaves the most room.
At the water closet, 604.3.2 lets shelves overlap the required clearance. On an open wall along a circulation path, the protruding object rule applies. The shelf's leading edge sits between 40 and 48 in., inside the zone where 307.2 allows 4 in. of projection at most.
Under 213.3.7, a bathing facility with shelves needs at least one meeting 603.4, placed to serve the fixtures that 213.3.6 requires.
Installation errors to avoid
Placing a shelf by eye, level with nearby dispensers or a tile course, can push it above 48 in. Hanging it over a grab bar without measuring the 12 in. gap is another way to fail.
Shelves in the standard stalls with none in the accessible compartment run against 213.3.7. A deep shelf on an open wall along a circulation path that sticks out more than 4 in. runs against 307.2.
Mixing up the two rules on one wall is a quieter error. A shelf placed with the coat hook reach range in mind can end up below 40 in.

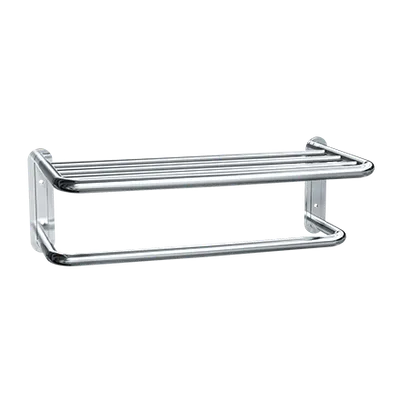

Choosing a restroom shelf
Check projection on the product drawing, including any lip or bracket. A unit headed for a circulation path needs 4 in. or less of projection to meet 307.2 there.
When the shelf will sit over a grab bar, check the unit's full height with its brackets. Brackets are part of the object above the bar. Local rules may ask for more, and the building official or other authority having jurisdiction makes the call.
